Charter the multicat “MERLIN” — 22 m × 7.5 m, built 2005, I.N.S.B. classed, owner-operated, with 30 t/m deck crane, two 12 m spud legs and a crew of three.

Multicat “MERLIN” is available for charter worldwide. A 22 m × 7,5 m multi-purpose workboat, built in 2005 and classed I.N.S.B., she is a proven platform for port development and dredging support, towing and pushing, buoy and anchor handling and deck cargo work — and can be chartered back-to-back with other floating equipment whenever a project needs more capacity.

Owner and operator MABROCONA JSC puts an experienced three-man crew (master, motorman, deckhand) on board for every charter, and full technical documentation of the vessel is available on request.

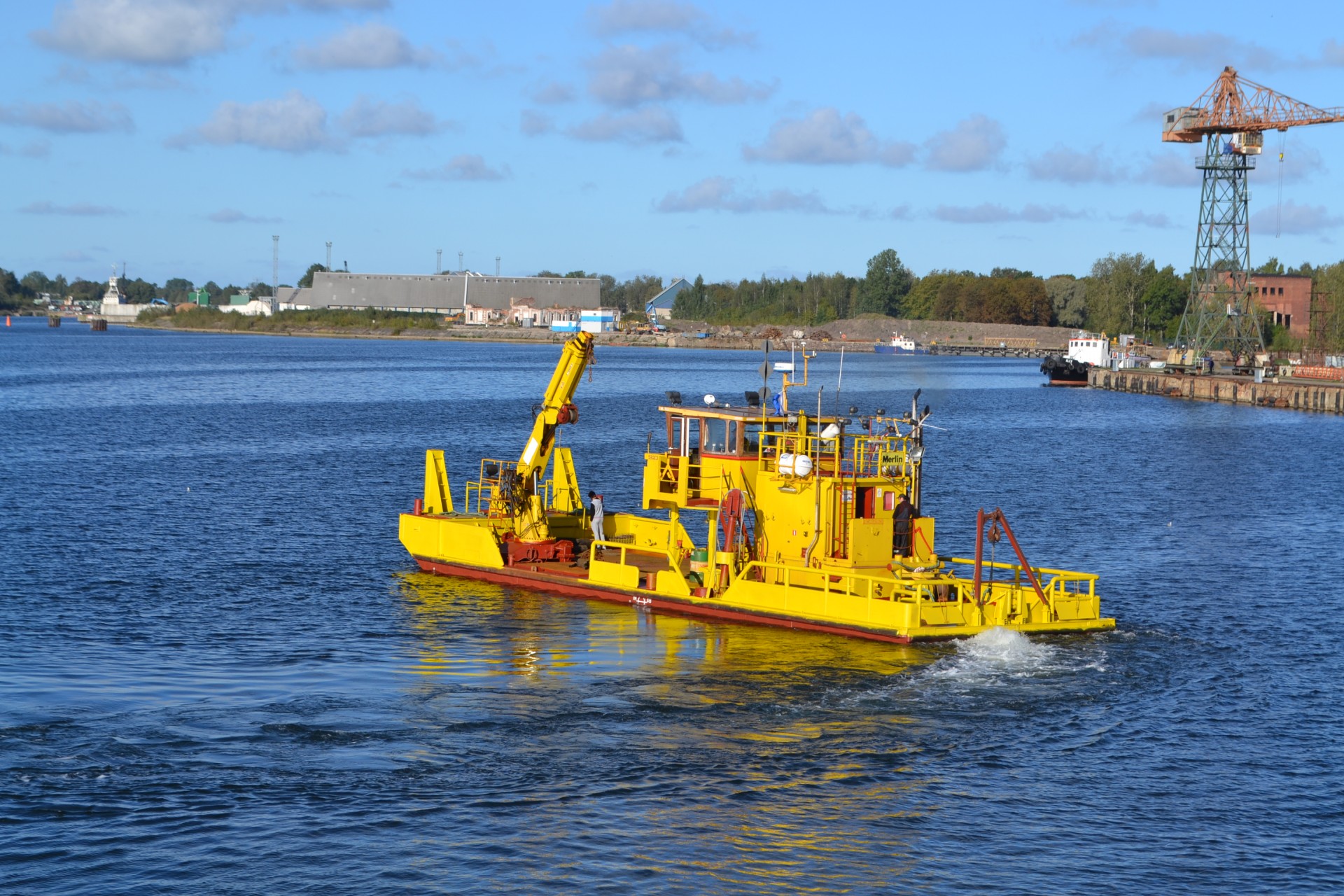

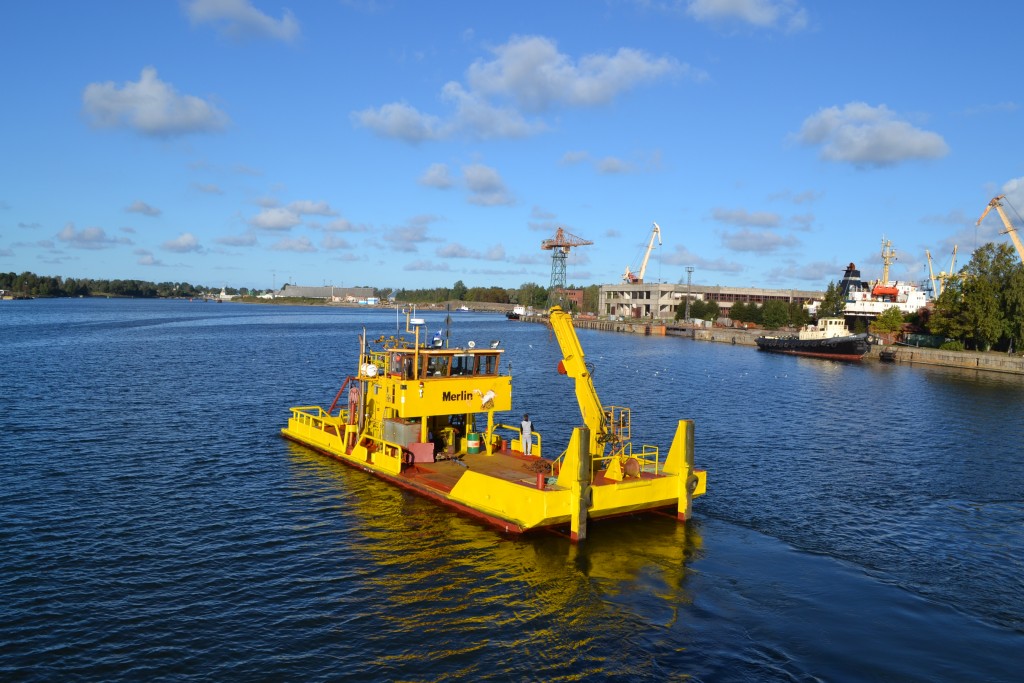

Multicat “MERLIN” — vessel photograph 1 of 14

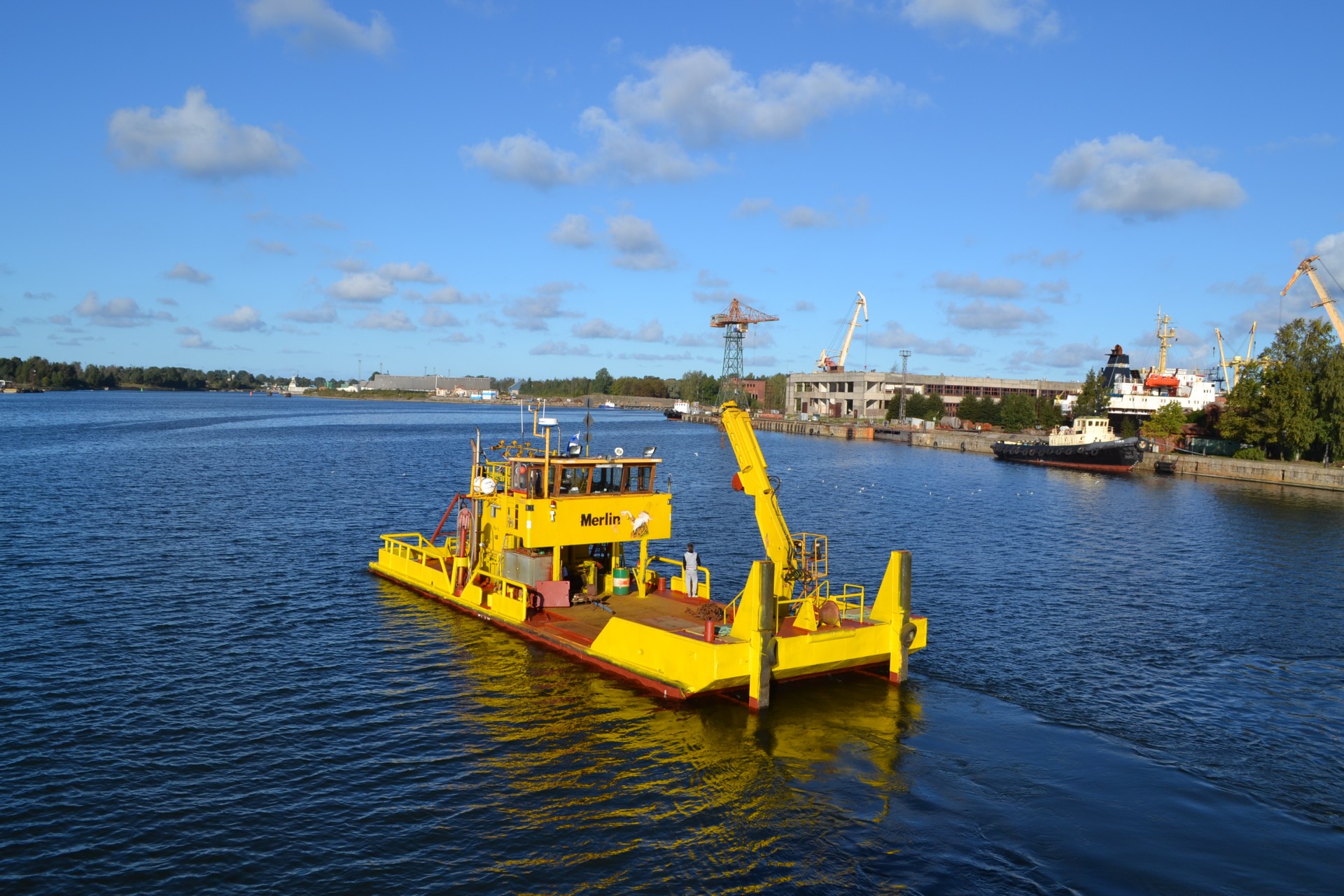

Multicat “MERLIN” — vessel photograph 2 of 14

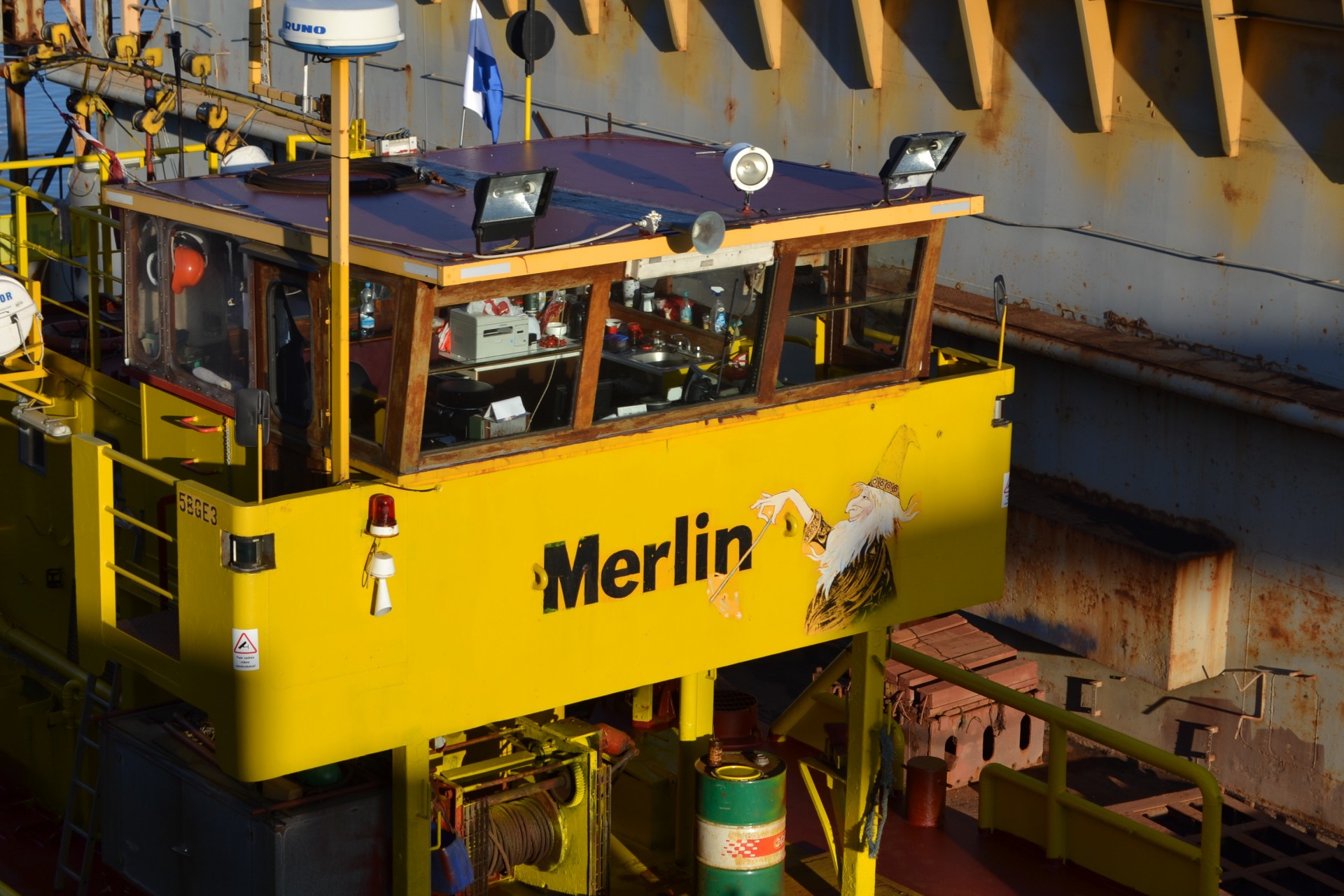

Multicat “MERLIN” — vessel photograph 3 of 14

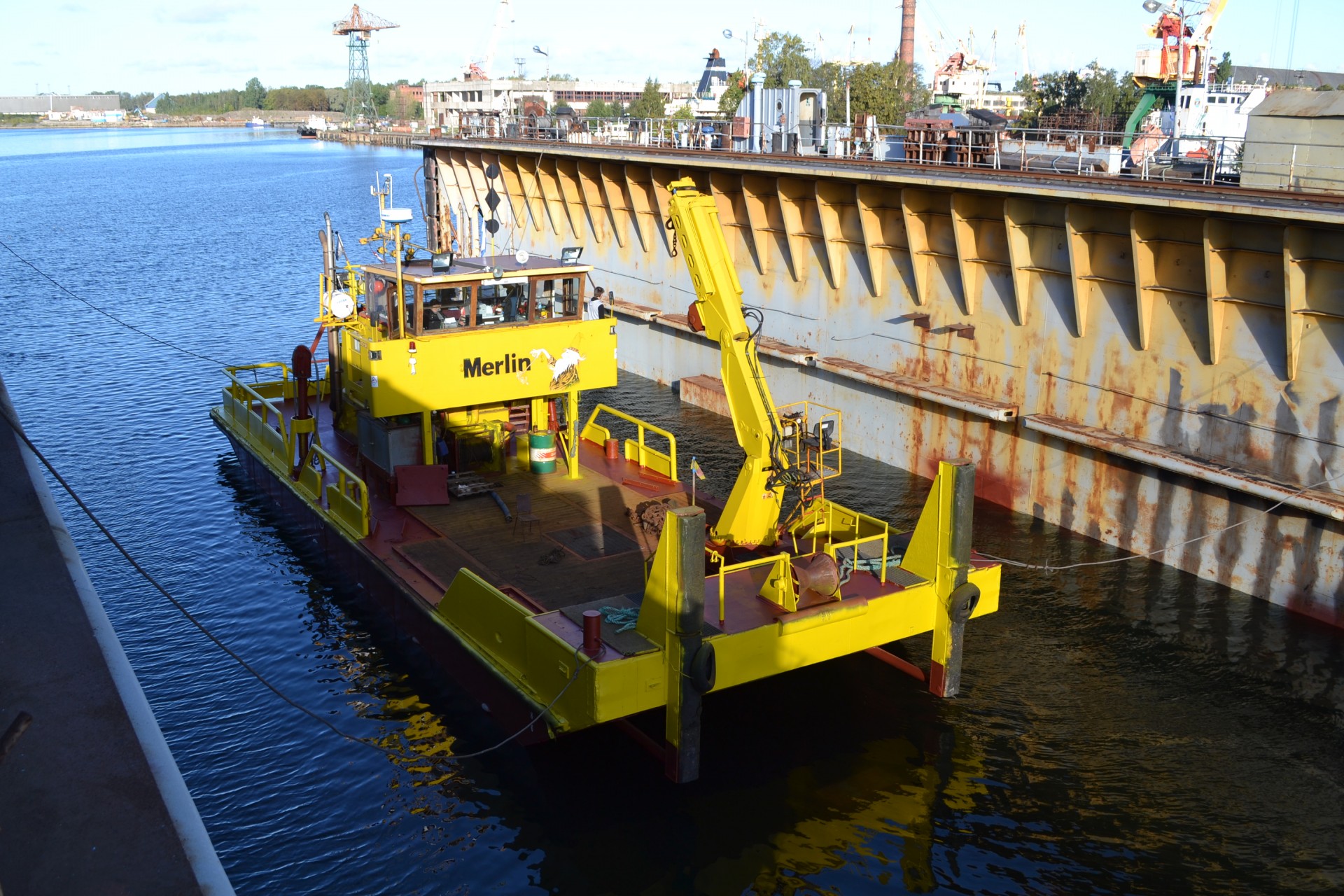

Multicat “MERLIN” — vessel photograph 4 of 14

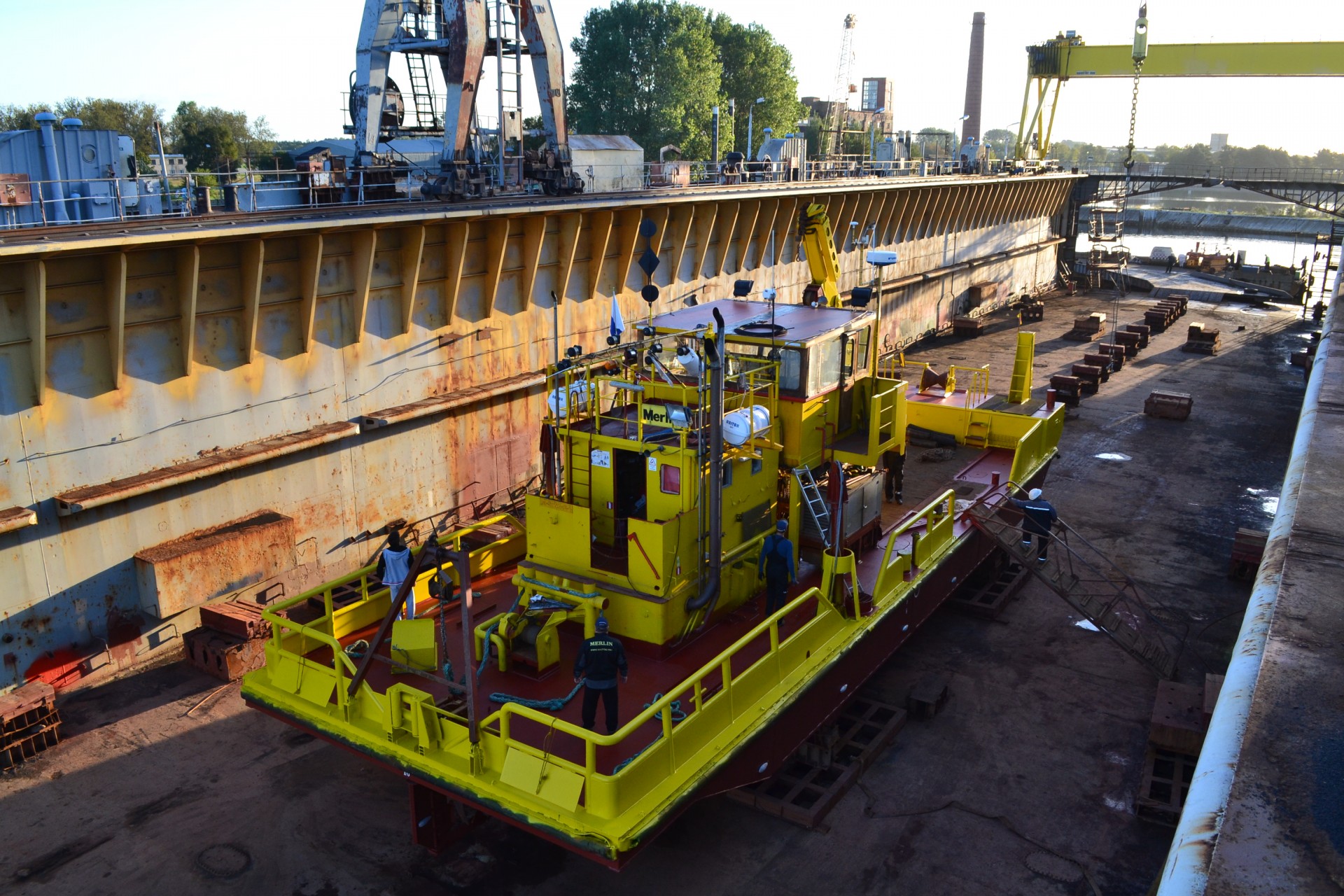

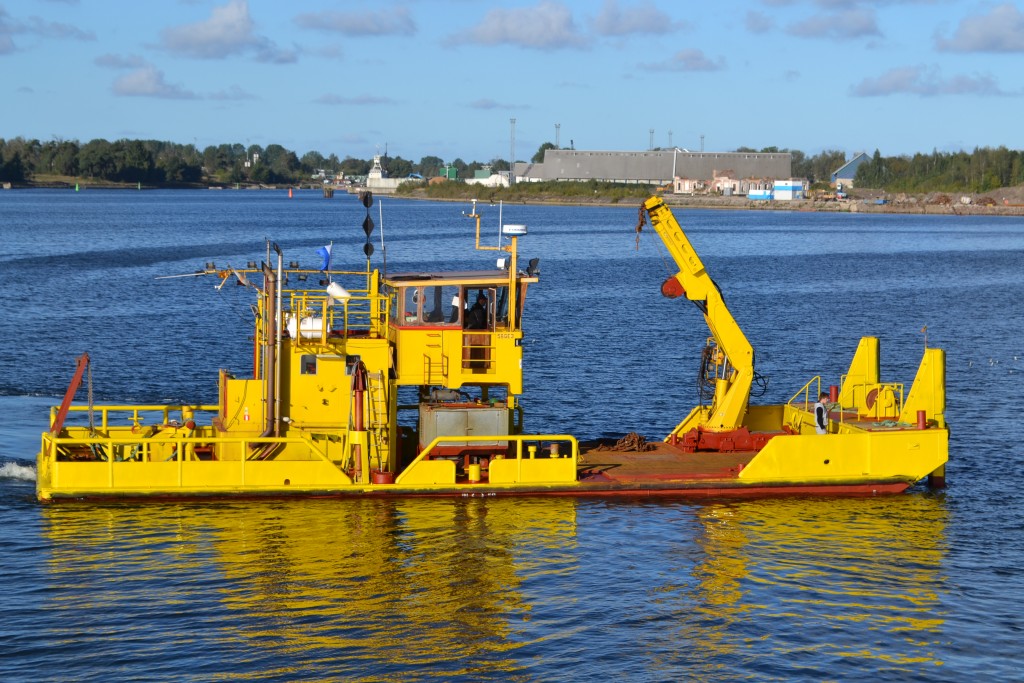

Multicat “MERLIN” — vessel photograph 5 of 14

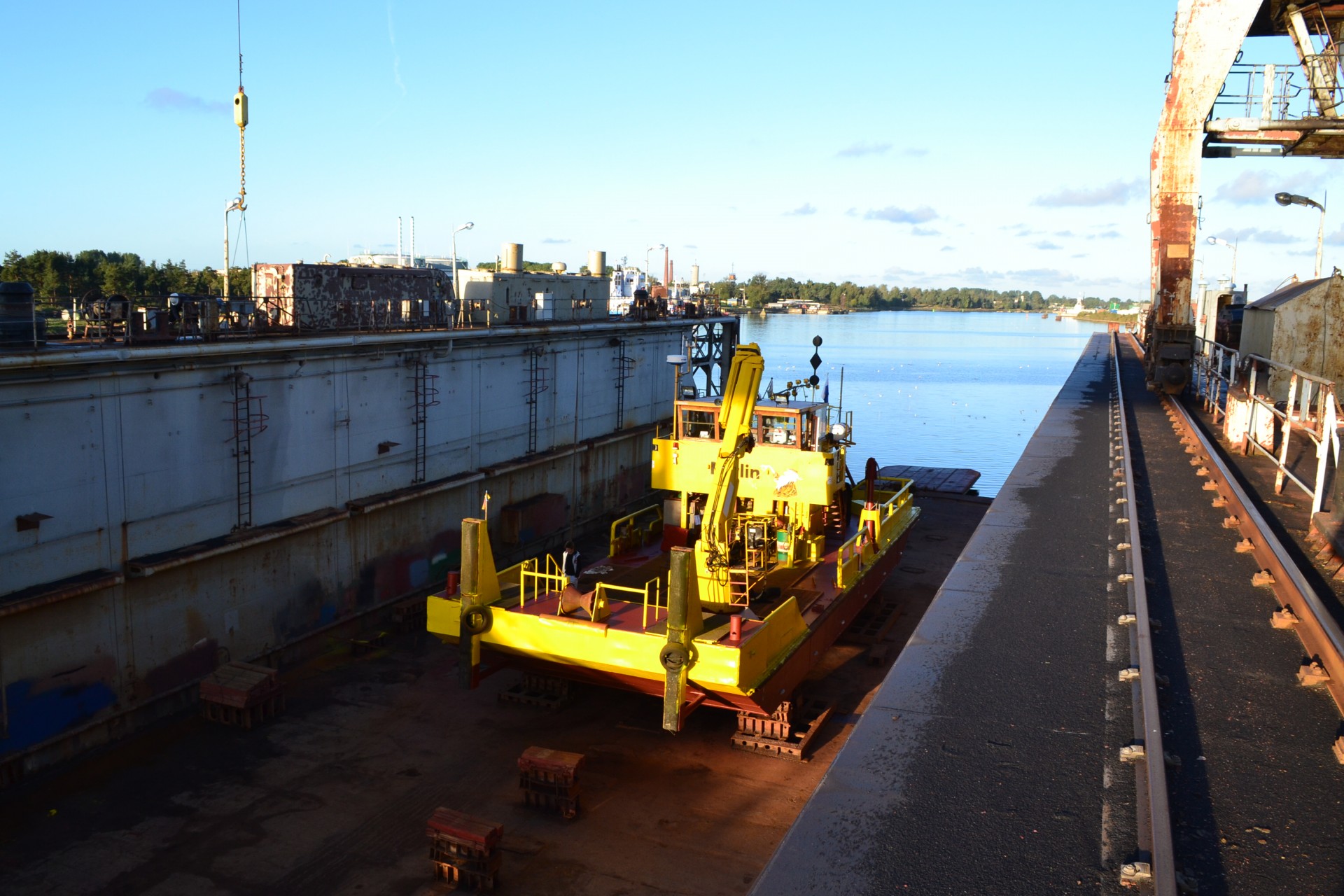

Multicat “MERLIN” — vessel photograph 6 of 14

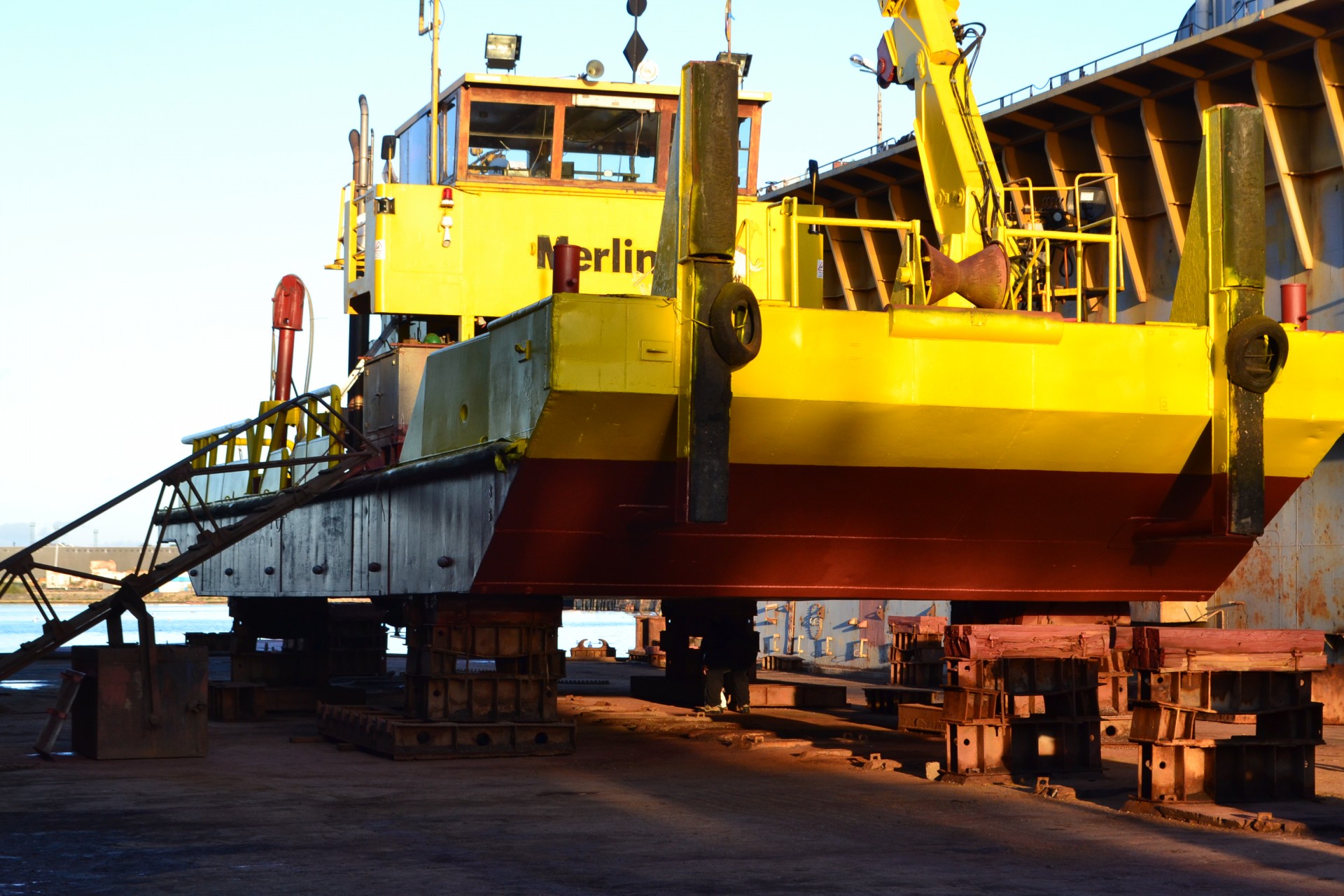

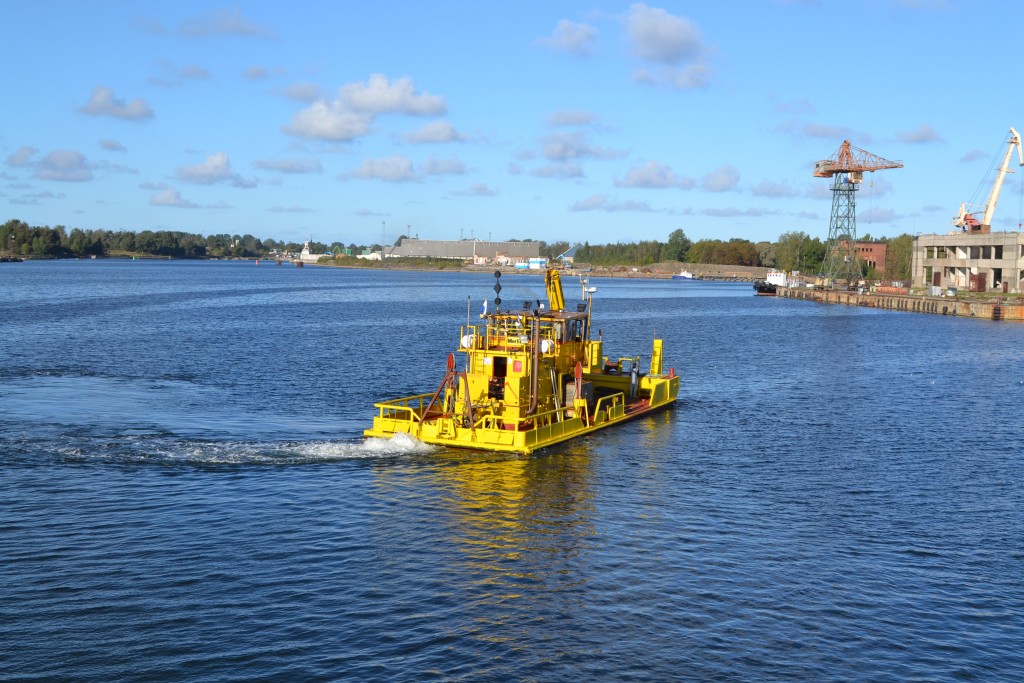

Multicat “MERLIN” — vessel photograph 7 of 14

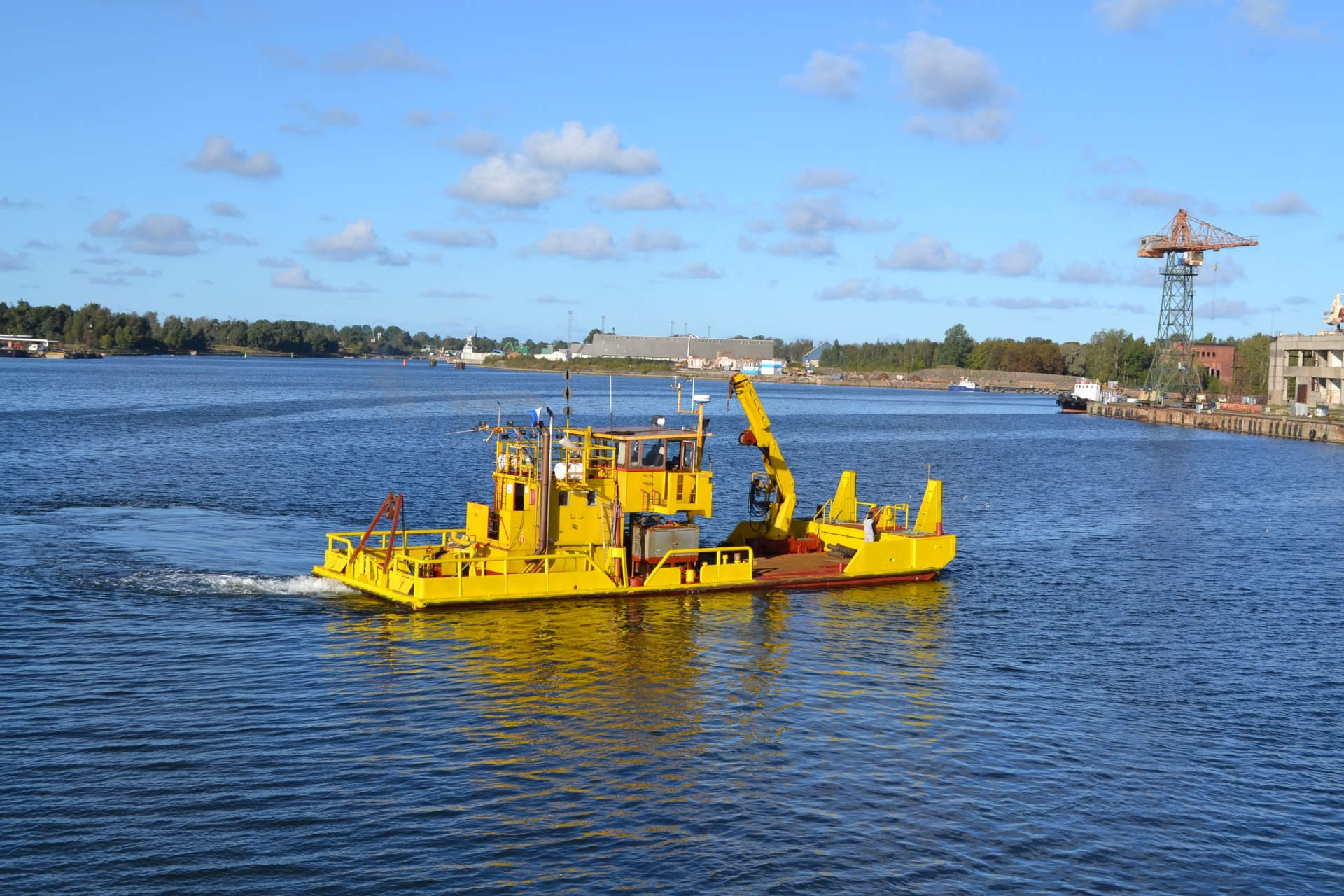

Multicat “MERLIN” — vessel photograph 8 of 14
Multicat “MERLIN” — vessel photograph 9 of 14
Multicat “MERLIN” — vessel photograph 10 of 14
Multicat “MERLIN” — vessel photograph 11 of 14
Multicat “MERLIN” — vessel photograph 12 of 14
Multicat “MERLIN” — vessel photograph 13 of 14
Multicat “MERLIN” — vessel photograph 14 of 14
Category: Workboat (Multi Cat) Build 2005, Cyprus flag, I.N.S.B. classed  (Download MERLIN specifications as PDF file)
Dimensions:
  • L – 22m
  • B – 7,5m
  • Draft aft 1,90m (Nozzle & Rudder)
  • Draft bow 1,50m
Equipment:
  • 2 spud legs of 12m;
  • deck crane 30 ton/m;
  • deck load 14 ton/2m;
  • Forward winch (anchor handling/deck);
  • Plough with A frame;
  • Stern winch (towing or plough);
  • hydraulic power pack for crane;
Engines:
  • 1 Cummins, KTA19M, main engine of 550 BHP with propeller in nozzle;
  • 1 retractable bow thruster (360 degrees) of 180 BHP;
Bollard pull: About 7,5 tons
Sailing area: Full European up to 20 miles from a safe haven
Insurance: Full cover H&M, P&I, LoH, Crew insurance
Fuel: Gasoil about 4.500 liters
Fuel Cons.: About 65 liters per hour all engines under full load. About 50 liters steaming and about 24 liters per hour on power pack and generator.
Fresh water: About 4000 liters.
Crew: Operated by 3 man. (Master, motorman & deckhand)
Nav. Eq.: Radar, autopilot, 2 VHF, Chart plotter for plough works, GPS, GRS
Safety eq.: As per rules for maximum 12 people including crew.
